Sensaphone Express II

Built-in: Power failure, Sound level, Backup Battery Voltage.

Inputs: Expandable up to 40 Inputs 8 Universal included: Dry Contact, Temperature, 4-20mA, 0-5VDC, Run Time, Pulse Count.

Outputs: 1 Form-A Relay included, expandable up to 17.

Notifications: 48 custom voice or numeric pager numbers.

Special Features: NEMA-4X Sealed weatherproof housing, input expandability.

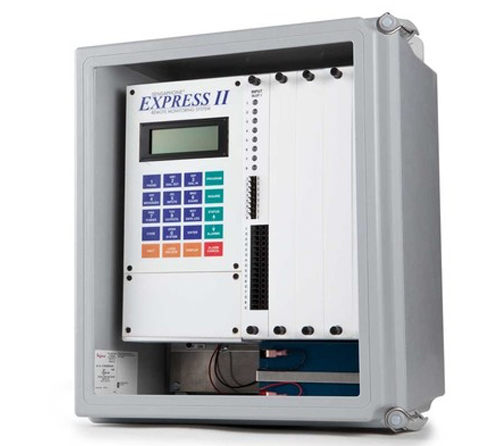

Sensaphone Express II

The robust Sensaphone Express II features advanced monitoring capabilities, plus allows for expansion of to 40 input/output channels. Easy to install, program, and expand, Express II can meet the needs of your system both today and tomorrow.

The Express II is as flexible as your application requires, with features like built-in power failure monitoring, 8 universally-configurable alarm inputs, and an on-board relay output for manual or automatic switching.

It offers a wide range of temperature sensing (-85˚F to 300˚F), 48 user-programmable dial out numbers, and complete remote touch-tone programming capability. Descriptive messages can be recorded for site identification and for each alarm input. Alarm-specific dialing and programmable call schedules allow users to customize the Express II’s dialing process.

The Express II is equipped with a gel-cell rechargeable battery that will provide 12 hours of backup time. The unit is housed in a NEMA-4X fiberglass enclosure with a front panel LCD and dual-color LEDs to indicate input status to on-site personnel. All programming settings and voice message are stored in nonvolatile memory.

ADVANCED CAPABILITIES

• 8 standard universally configurable inputs
• 32 additional channels for input/output expansion
• Built-in power failure and sound level monitoring
• Built-in relay output for manual or automatic switching
• Digital speech recording allows the user to record custom ID and input messages
• Complete programming access using the local keypad or via remote touch-tone phone
• Dials up to 48 user-programmable phone numbers
• Alarm specific dialing and phone lists allow the user to customize the dialing process
• Housed in a NEMA-4 fiberglass enclosure with a 12-hour Gel Cell rechargeable battery backup
• Front panel LEDs indicate input status to on-site personnel

Sensaphone Express II SPECIFICATIONS

GENERAL

Monitoring Capacity

• 8 universal input channels standard configurable as:
• -Normally open dry contact
• -Normally closed dry contact
• -Temperature w/ 2.8K or 10K Thermistor
• -Pulse counter
• -Time Accumulator
• -4-20mA analog with custom look up table
• -0-5 Volt analog with custom look up table
• Built-In Monitoring
• -Power failure
• -High sound level
• -Backup battery

Output type

• 1 built in relay, SPST latching 2A 250 VAC

Expansion 32 additional channels available for input/output expansion

Programming All parameters can be programmed from the local keypad or any remote touch-tone phone Speech technology ADPCM 24 kb/s

Message length User selectable 5, 7 or 11 seconds per input channel

Message types 1 recordable ID message 1 recordable alarm message for each input channel

Telephone numbers

• Total of 48 phone numbers with 40 digits each
• Allows alarm specific dialing
• Multiple phone lists for day/night/weekend call scheduling

Dialing format Touch-tone, pulse, or auto-detect

Phone connector RJ11C

Local indications

• Built in LCD display to show alarm dialing status
• Dual-color LED indication for each input channel

ELECTRICAL

• Power Requirements 120 VAC, 60 Watts Max
• Internal Battery Backup 12 hour Gel Cell with built-in charger

ENVIRONMENTAL

• Operating Temperatures 32 - 120 degrees F
• Operating Humidity 0 - 90%, non-condensing
• Storage Temperatures 0 - 130 degrees F

PHYSICAL

• Dimensions 14.4" x 12.4" x 7.3"
• Weight 15 lbs.
• Enclosure NEMA-4X fiberglass with latched window cover
