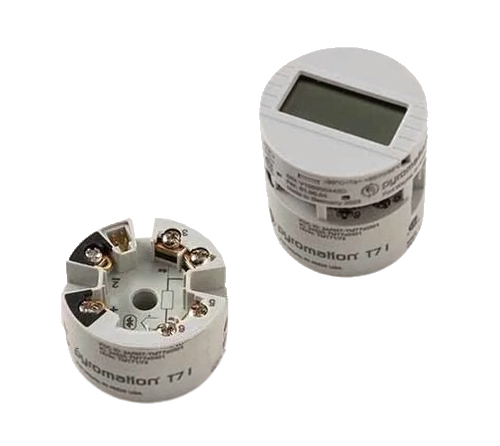

The T71 is a two-wire transmitter with an analog output. It has measurement input for resistance thermometers (RTDs) in 2-, 3- or 4-wire connections, thermocouples, and voltage signals. Setting up of the transmitter is done using the communication cable. This transmitter is available with or without a digital display, and can be mounted in a direct or remote general-purpose aluminum screw-cover housing.

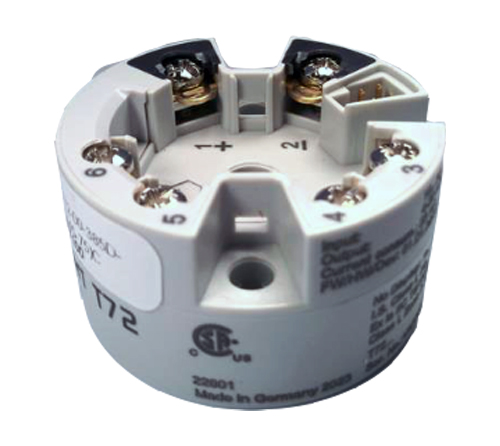

The T72 is a two-wire transmitter with an analog output. It has measurement input for resistance thermometers (RTDs) in 2-, 3-, or 4-wire connections, thermocouples, and voltage signals. The transmitter can be programmed with a PC or HART® protocol hand-held terminal. This transmitter is available with or without a digital display, and can be mounted in a direct or remote general-purpose aluminum screw-cover housing.

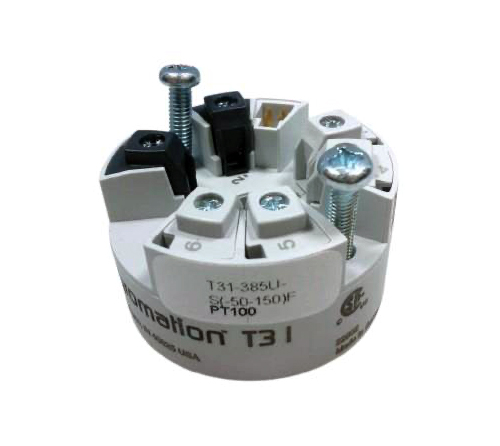

The T31 is a two-wire transmitter with an analog output. It has measurement input for Pt100 resistance thermometers (RTDs) in 2-, 3- or 4-wire connections. Setting up of the transmitter is done using the communication cable. CSA certified for use in specified Hazardous Locations. These small units can be mounted in Pyromation connection heads or they can be used for surface mounting using a 35 mm DIN rail mounting clip.
The new temperature transmitter TTH200 supports both the HART 5 and HART 7 protocol and is the standard device of the proven TTx200 / TTx300 product family in two-wire technology.
The TTH200 is provided for all HART standard applications in temperature measurement with one sensor input. The transmitter follows NAMUR Recommendations such as NE 89 and NE 107. The TTH200 supports the same functionality as the TTH300, but without sensor redundancy and sensor drift monitoring. As an option, an LCD indicator can be connected.
The transmitter can be configured with ABB-tools such as Field Information Manager (FIM), with DAT200 (Asset Vision Basic) via DTM, with a Handheld via EDD, or with any standard tool using FDI-/FDT-Technology.
The two-channel temperature transmitter TTH300 with HART, PROFIBUS PA or FOUNDATION Fieldbus in two-wire technology has extensive functions and diagnostic options for all applications. For the new TTH300 HART, these have been expanded once again and the user-friendliness has been further improved.
The TTH300 is provided for the highest requirements of temperature measurement with two sensor inputs. This supports sensor redundancy and sensor drift monitoring. The transmitter follows NAMUR Recommendations such as NE 89 and NE 107. As an option, an LCD indicator with operating buttons can be connected.
The TTH300 HART can be configured with ABB-tools such as Field Information Manager (FIM), with DAT200 (Asset Vision Basic) via DTM, with a Handheld via EDD, or with any standard tool using FDI-/FDT-Technology.
Transmitter with PROFIBUS PA can be configured via GSD file, EDD or DTM, with FOUNDATION Fieldbus via EDD/CF.
